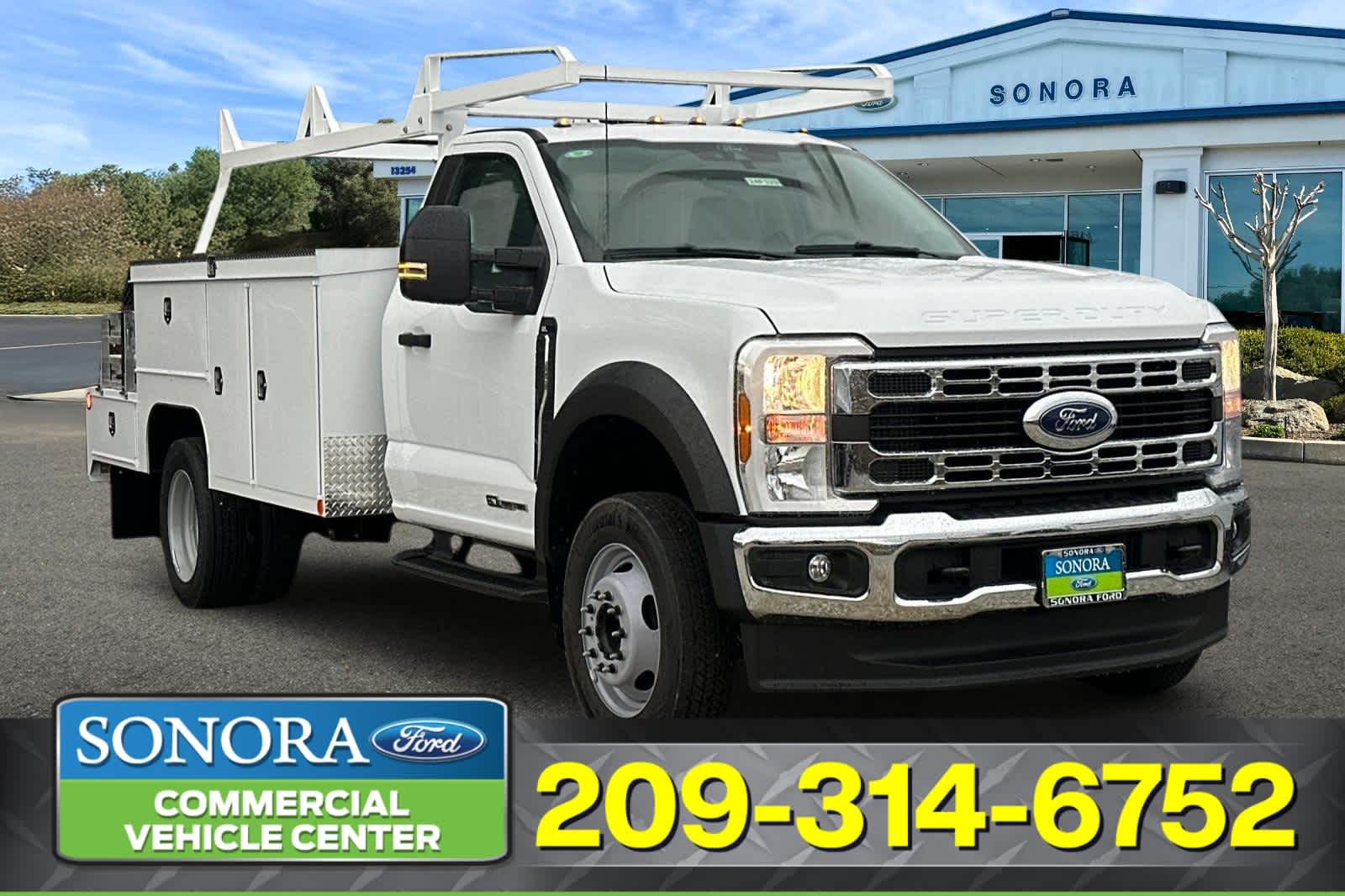

New 2024 Ford Super Duty F-550 DRW XL

VIN: 1FDUF5GT8RDA34413
Stock #: 24F329

Vehicle Details

Trans.:10-Speed A/T
Drivetrain:Rear Wheel Drive
Engine: 6.7L 8 Cylinder Engine
Fuel Type:Diesel
Ext. Color:Oxford White
Int. Color:Medium Dark Slate
MSRP
$70,245
Doc Fee
+$85
MARKET ADJUSTMENT
+$25,148
Sonora Price
$95,478

Add Your Heading Text Here

Description

IPod/MP3 Input, Onboard Communications System, Remote Engine Start, Smart Device Integration, WiFi Hotspot, COMMERCIAL UPFIT. XL trim, Oxford White exterior and Medium Dark Slate interior.

KEY FEATURES INCLUDE
iPod/MP3 Input, Onboard Communications System, Remote Engine Start, Smart Device Integration, WiFi Hotspot Ford XL with Oxford White exterior and Medium Dark Slate interior features a 8 Cylinder Engine with 335 HP at 3750 RPM*.

OUR OFFERINGS
Sonora Ford and Subaru of Sonora, located at 13254 Mono Way in Sonora, CA, is your premier retailer of New and used Ford and Subaru vehicles. Our dedicated sales staff and top-trained technicians are here to make your auto shopping experience fun, easy and financially advantageous. Please utilize our various online resources and allow our excellent network of people to put you in your ideal Ford, Subaru vehicle or the Pre-Owned Car, truck or SUV of your dreams today!

$85.00 documentation

Standard Features

  • 4-Wheel Disc Brakes,8 Cylinder Engine,A/C,ABS,Adjustable Steering Wheel,AM/FM Stereo,Automatic Headlights,Auxiliary Audio Input,Brake Assist,Cruise Control,Daytime Running Lights,Driver Adjustable Lumbar,Driver Air Bag,Dual Rear Wheels,Engine Immobilizer,Front Head Air Bag,Gasoline Fuel,Heated Mirrors,Integrated Turn Signal Mirrors,Intermittent Wipers,Keyless Entry,MP3 Player,Passenger Air Bag,Passenger Air Bag On/Off Switch,Passenger Vanity Mirror,Power Door Locks,Power Mirror(s),Power Steering,Power Windows,Rear Wheel Drive,Remote Start,Smart Device Integration,Split Bench Seat,Steel Wheels,Steering Wheel Audio Controls,Telematics,Tires – Front All-Season,Tires – Rear All-Season,Tow Hooks,Traction Control,Transmission w/Dual Shift Mode,Trip Computer,Variable Speed Intermittent Wipers,Vinyl Seats,WiFi Hotspot

Vehicle Location

Sonora Ford
13254 Mono Way
Sonora, CA 95370

VEHICLE DATA
Certain specifications, prices and equipment data have been provided under license from Chrome Data Solutions (\’Chrome Data\’). Ā© 2026 Chrome Data Solutions, LP. All Rights Reserved. This information is supplied for personal use only and may not be used for any commercial purpose whatsoever without the express written consent of Chrome Data. Chrome Data makes no guarantee or warranty, either expressed or implied, including without limitation any warranty of merchantability or fitness for particular purpose, with respect to the data presented here. All specifications, prices and equipment are subject to change without notice.

ESTIMATE MPG
EPA mileage ratings are supplied by Chrome Data Solutions, LP for comparison purposes only. Your actual mileage will vary, depending on how you drive and maintain your vehicle, driving conditions, battery pack age/condition (hybrid models only) and other factors.

Based on 2019 EPA mileage ratings. Your MPGe/MPG and driving range will vary depending on driving conditions, how you drive and maintain your vehicle, battery-pack age/condition, and other factors.

PRICING
Vehicle pricing is believed to be accurate. Tax, title and registration are not included in prices shown unless otherwise stated. Manufacturer incentives may vary by region and are subject to change. Vehicle information & features are based upon standard equipment and may vary by vehicle. Monthly payments may be higher or lower based upon incentives, qualifying programs, credit qualifications, residency & fees. No claims, or warranties are made to guarantee the accuracy of vehicle pricing, payments or actual equipment. Call to confirm accuracy of any information.

*Number of views in last 30 days

Technical Specifications

  • Vehicle Name: Ford Super Duty F-550 DRW
  • Body Style: SD Regular Cab
  • Body Code: H
  • Drivetrain: Rear Wheel Drive
  • Passenger Capacity: 2, 3
  • Base Curb Weight: 6661, 7369
  • Gross Axle Wt Rating – Front: 4800, 5200, 5200, 5600, 5600, 5600, 6000, 6000, 6000, 6500, 6500, 7000, 7000, 7000, 7500, 7500, 7500
  • Gross Axle Wt Rating – Rear: 13660, 13900, 14706
  • Curb Weight – Front: 3602
  • Curb Weight – Rear: 3004
  • Gross Vehicle Weight Rating Cap: 17500, 18000, 19000, 19500
  • Fuel Economy Est-Combined: – TBD –
  • EPA Fuel Economy Est – City: – TBD –
  • EPA Fuel Economy Est – Hwy: – TBD –
  • Gross Combined Wt Rating: 30000, 34500, 39000, 40000, 43000
  • Dead Weight Hitch – Max Trailer Wt.: 5000
  • Dead Weight Hitch – Max Tongue Wt.: 500
  • Wt Distributing Hitch – Max Trailer Wt.: 18500
  • Wt Distributing Hitch – Max Tongue Wt.: 1850
  • Fifth Wheel Hitch – Max Trailer Wt.: 22000, 25700, 30200, 34200
  • Fifth Wheel Hitch – Max Tongue Wt.: 5500, 6425, 7550, 8550
  • Maximum Trailering Capacity: 18500
  • Engine Order Code: 99T
  • Engine Type: Intercooled Turbo Diesel V-8
  • Displacement: 6.7 L/406
  • Fuel System: Diesel Direct Injection
  • SAE Net Horsepower @ RPM: 330 @ 2200
  • SAE Net Torque @ RPM: 950 @ 1800
  • Trans Order Code: 44G
  • Trans Type: 10
  • Trans Description Cont.: Automatic w/OD
  • Trans Description Cont. Again:
  • First Gear Ratio (:1): 4.62
  • Second Gear Ratio (:1): 2.92
  • Third Gear Ratio (:1): 2.13
  • Fourth Gear Ratio (:1): 1.77
  • Fifth Gear Ratio (:1): 1.52
  • Sixth Gear Ratio (:1): 1.28
  • Reverse Ratio (:1): 4.70
  • Trans Power Take Off: Yes
  • Trans PTO Access: Yes
  • Transfer Case Model: None
  • Transfer Case Power Take Off: Yes
  • Cold Cranking Amps @ 0° F (Primary): 750
  • Cold Cranking Amps @ 0° F (2nd): 750
  • Tons/yr of CO2 Emissions @ 15K mi/year: – TBD –
  • Maximum Alternator Capacity (amps): 190, 190 & 160, 250 & 150, 250 & 160, 250
  • Engine Oil Cooler: None
  • Suspension Type – Front: Other
  • Suspension Type – Rear: Leaf
  • Spring Capacity – Front: 4800, 5200, 5200, 5600, 5600, 5600, 6000, 6000, 6000, 6500, 6500, 7000, 7000, 7000, 7500, 7500, 7500
  • Spring Capacity – Rear: 13900, 14706, 15000
  • Axle Type – Front: Non-Independent
  • Axle Type – Rear: Rigid Axle
  • Axle Capacity – Front: 7000, 7500
  • Axle Capacity – Rear: 13660, 13900, 14706
  • Axle Ratio (:1) – Front: 4.10, 4.30, 4.88
  • Axle Ratio (:1) – Rear: 4.10, 4.30, 4.88
  • Front Tire Order Code: TGJ, TGM
  • Rear Tire Order Code: TGJ, TGM
  • Spare Tire Order Code: , 512
  • Front Tire Size: LT225/70SR19.5
  • Rear Tire Size: LT225/70SR19.5
  • Spare Tire Size: , Full-Size
  • Front Tire Capacity: 7500
  • Rear Tire Capacity: 15000
  • Revolutions/Mile @ 45 mph – Front: 647
  • Revolutions/Mile @ 45 mph – Rear: 645, 647
  • Front Wheel Size: 19.5 X 6
  • Rear Wheel Size: 19.5 X 6
  • Spare Wheel Size: , Full-Size
  • Front Wheel Material: Aluminum, Steel
  • Rear Wheel Material: Aluminum, Steel
  • Spare Wheel Material: , Steel
  • Steering Type: Re-Circulating Ball
  • Turning Diameter – Curb to Curb: 42.5
  • Brake Type: 4-Wheel Disc
  • Brake ABS System: 4-Wheel
  • Brake ABS System (Second Line): 4-Wheel
  • Disc – Front (Yes or ): Yes
  • Disc – Rear (Yes or ): Yes
  • Front Brake Rotor Diam x Thickness: 15.4
  • Rear Brake Rotor Diam x Thickness: 15.8
  • Drum – Rear (Yes or ):
  • Rear Drum Diam x Width:
  • Fuel Tank Capacity, Approx: 26.5, 40
  • Aux Fuel Tank Capacity, Approx: , 26.5
  • Front Head Room: 40.8
  • Front Leg Room: 43.9
  • Front Shoulder Room: 66.7
  • Front Hip Room: 62.5
  • Wheelbase: 145
  • Length, Overall: 230.7, 272.9
  • Width, Max w/o mirrors: 80
  • Height, Overall: 82.6
  • Overhang, Front: 38.3
  • Overhang, Rear w/o bumper: 47.2, 89.4
  • Cab to Axle: 60
  • Cab to End of Frame: 107.2, 149.4
  • Frame Width, Rear: 34.2
  • Ground Clearance, Front: 8.5
  • Ground Clearance, Rear: 8.5
  • Seventh Gear Ratio (:1): 1.00
  • Eighth Gear Ratio (:1): 0.85
  • Country of Origin: United States Ford Incomplete Vehicle
  • Model Group: F-Series Chassis
  • Vehicle Segment: Chassis
  • Vehicle Type: Standard Cab
  • Body Cab Style: Standard Cab
  • Engine Displacement Units: 6.7, 7.3, 7.3
  • Engine Camshaft: OHV, OHV, OHV
  • Engine Block Type: iron, iron, iron
  • Engine Cylinder Count: 8, 8, 8
  • Engine Valve Count: 2, 2, 4
